What Is an HDMI Splitter and How Does It Work?

One TV box, games console or laptop can only have one HDMI output, but you may want the same picture on two screens. That is where the answer to what is an HDMI splitter is useful. It is a small adapter that takes one HDMI signal and copies it to two or more HDMI displays.

For a straightforward setup - such as showing the same programme on a living-room TV and a second screen, or sharing a console picture with a monitor - an HDMI splitter can be an affordable, practical fix. The key word is same: a splitter duplicates a signal. It does not create separate screens with different content.

What is an HDMI splitter used for?

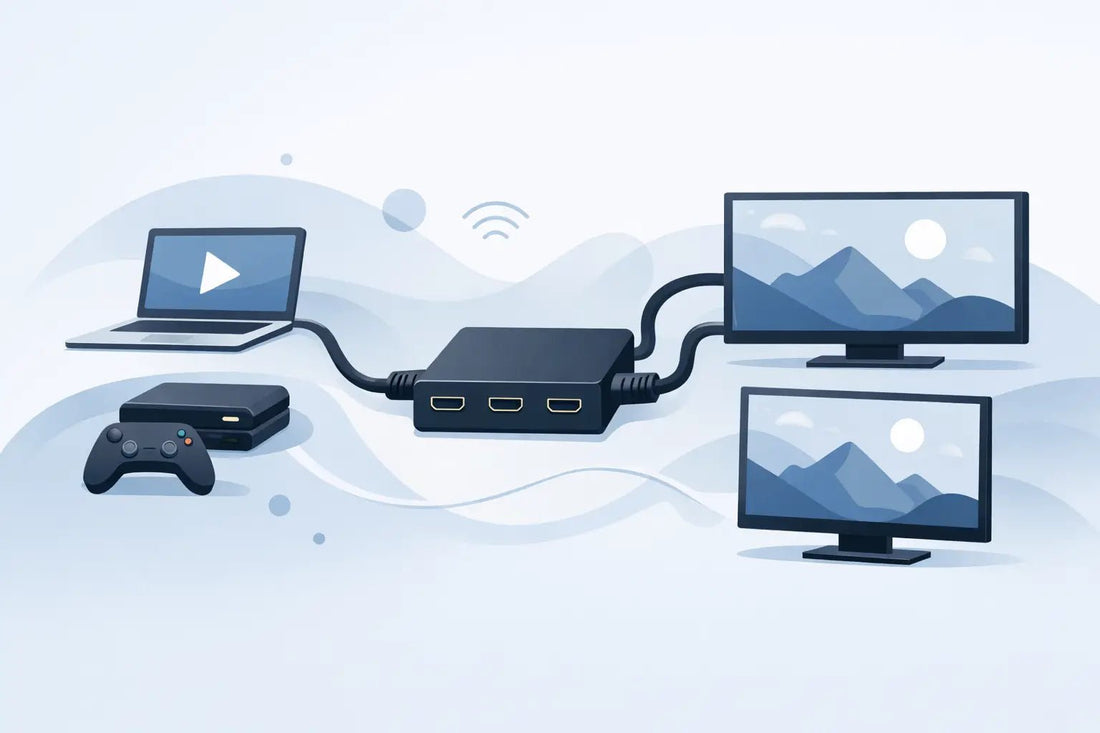

An HDMI splitter has one input port for your source device and multiple output ports for displays. Connect the source to the input, then run HDMI cables from the outputs to your TVs, monitors or projector. Once powered and connected correctly, each display receives the same video and audio signal.

A common 1-in-2-out HDMI splitter is designed for one device and two displays. For example, you could connect a Sky box, Freeview box, Blu-ray player, games console or streaming stick to two TVs. Some splitters offer more outputs if you need to show one source on several screens.

This can be handy in a home where a second screen is nearby, in a small office, at a classroom display, or when a projector and TV need to show the same presentation. It can also save you from constantly moving one HDMI cable between screens.

An HDMI splitter is not an HDMI switch

The names sound similar, but the jobs are different. An HDMI splitter sends one source to multiple displays. An HDMI switch lets you connect multiple sources to one display.

If your TV has only one free HDMI port and you want to plug in both a console and a streaming device, you need a switch. If you have one console and want its picture on two TVs, you need a splitter.

Some products combine switching and splitting functions, but a basic adapter usually does one job. Check the input and output wording before buying. A listing marked “1 input, 2 output” is normally a splitter. “3 input, 1 output” normally means a switch.

What an HDMI splitter can and cannot do

A splitter copies the same image to every connected display. If a football match is playing on the source device, every screen shows that match. You cannot use it to play a game on one TV while someone watches a film on the other.

It also will not turn one laptop screen into an extended desktop with separate windows on each monitor. For that, you need a computer that supports multiple display outputs, a suitable docking station, or a graphics adapter designed for extended displays.

There is another limitation worth knowing: the connected displays often need to agree on a video format. If one TV supports 4K and the other only supports 1080p, the splitter may send both screens at 1080p. This is normal. The setup usually follows the capability of the lower-spec display so both can show an image.

Choosing the right HDMI splitter for your setup

The lowest-priced adapter is not always the right choice if your equipment uses newer video standards. Match the splitter to the source device and the screens you own.

Check the resolution and refresh rate

For standard HD TVs, a 1080p splitter is usually enough. If you use a 4K television, 4K monitor, modern games console or 4K streaming device, choose a splitter that specifically supports 4K at the refresh rate you need.

For everyday films and television, 4K at 60Hz is a sensible target. Gaming setups may need more. A splitter that only supports 4K at 30Hz can make movement look less smooth and may not suit a console set to 60Hz or above. If you do not need 4K, a 1080p model can be a better-value option.

Look for powered operation where needed

Simple HDMI splitters may draw a small amount of power through the HDMI connection. That can work for short cables and basic HD equipment, but it is not always reliable. A powered splitter uses a USB lead or mains adapter to supply more consistent power.

A powered model is often the better choice for 4K signals, longer cable runs, two large TVs or a setup that has previously suffered from a blank or flickering screen. It adds one more lead, but it can prevent frustration later.

Check HDMI and content protection compatibility

HDMI versions, bandwidth and HDCP support affect whether the adapter works with protected content. HDCP is the copy-protection system used by many streaming services, set-top boxes and Blu-ray players. If a splitter does not support the HDCP version required by your source, you may see an error message or a black screen when trying to watch protected programmes.

For a current 4K streaming or console setup, choose a splitter described as supporting the relevant 4K and HDCP standards. Product specifications matter more than the physical appearance of the ports, as HDMI connectors can look identical while supporting different performance levels.

Consider the number of outputs and cable length

A 1x2 splitter is suitable for two displays. There is no benefit in paying for extra outputs you will not use, although a larger model may be useful for a shared room or display area.

HDMI cable quality and length also matter. Very long or damaged cables can weaken the signal, especially with 4K. Start with good-condition cables of sensible length. If your splitter works with one short cable but not with a longer one, the cable is often the issue rather than the adapter.

How to connect an HDMI splitter

Set-up is usually quick. First, turn off the source device and displays if possible. Connect an HDMI cable from the source device to the splitter's input port. Then connect HDMI cables from each splitter output to the HDMI ports on your TV, monitor or projector.

If the splitter includes a USB power cable or mains adapter, connect it before turning the equipment back on. Select the correct HDMI input on each display, then switch on the source device. Give the equipment a moment to recognise the connection, particularly after changing from one screen to two.

If both displays are the same type and resolution, set-up is normally simple. With mixed equipment, begin with the lower-resolution screen connected as well. This helps you see whether the system has selected a format both displays can handle.

Common HDMI splitter problems and simple fixes

A blank screen does not always mean the splitter has failed. Start by checking that the source cable is plugged into the port labelled Input, not Output. This is an easy mistake because the connections look alike.

If one screen works but the other does not, test each output with the same display and cable. That helps identify whether the issue is an output, a cable or the TV input. Try a shorter cable if possible, and make sure each display is set to the correct HDMI source.

For flickering, picture dropouts or no 4K option, lower the source resolution temporarily. If the picture becomes stable at 1080p, the setup may need a higher-spec splitter, better cables or external power. Disconnecting and reconnecting the HDMI cables after changing settings can also refresh the handshake between devices.

No sound is often related to the selected output device on the source. Check the audio settings on your console, laptop or TV box. Remember that both screens receive the same audio signal, although each TV can control its own volume if it has built-in speakers.

Is an HDMI splitter worth buying?

An HDMI splitter is worth buying when the goal is simple: show the same device on more than one screen without swapping cables. It is a small accessory with a clear job, and a basic model can suit an HD TV, DVD player or older console very well.

For 4K television, streaming and newer consoles, spend a little more time checking the specification. The right splitter should match your required resolution, refresh rate, HDCP support and number of screens. Buying for the setup you actually have is usually better value than paying for features you will never use.

Before ordering, count your devices, check the labels on your TVs and decide whether you need a copied picture or separate content. That one check makes choosing the right HDMI adapter much easier.
